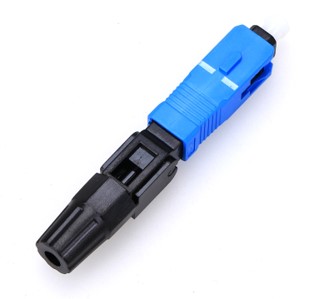

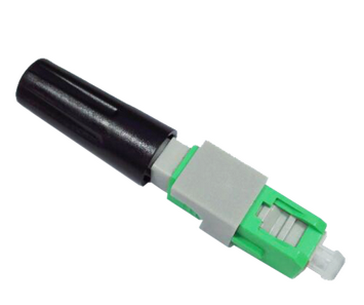

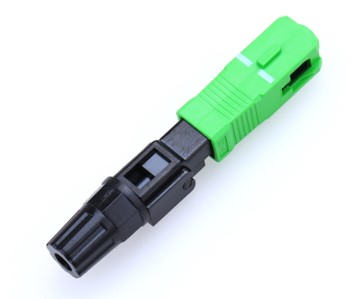

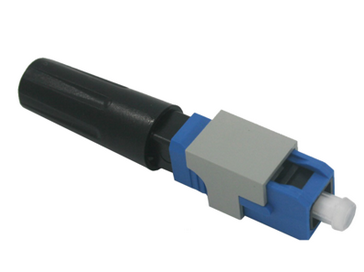

Fiber Fast Connector is a passive devices, used to connect optical fiber cable to form a continuous optical patch. It has been widely used in fiber optic transmission,fiber patch panel,and optical fiber test instruments.
Features
1.Field installable, cost effective, user friendly. 2.PC, APC polishing optional. 3.FTTH cable, fiber optic cable optional. 4.Excellent mechanical capability.
Technical Specification
|
Optical Characteristic |
Description |
|
Insertion loss |
Max.≤0.30dB |
|
Return loss |
≥ 50（UPC ）；≥55（APC ） |
|
Tensile |
△IL＜0.3dB@ 30N |
|
Cable |
3.0X2.0mm Drop cable |
|
Operating temp. |
-40℃～+70℃ |
|
Storage temp. |
-40℃～+80℃ |
